Product Introduction

H-beam steel is a new type of economic construction steel.

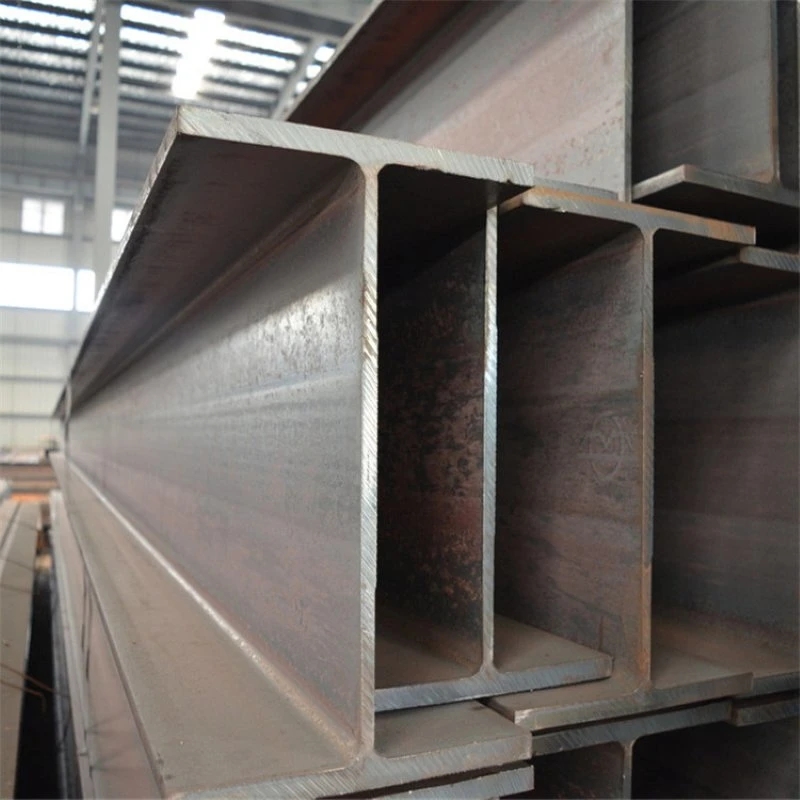

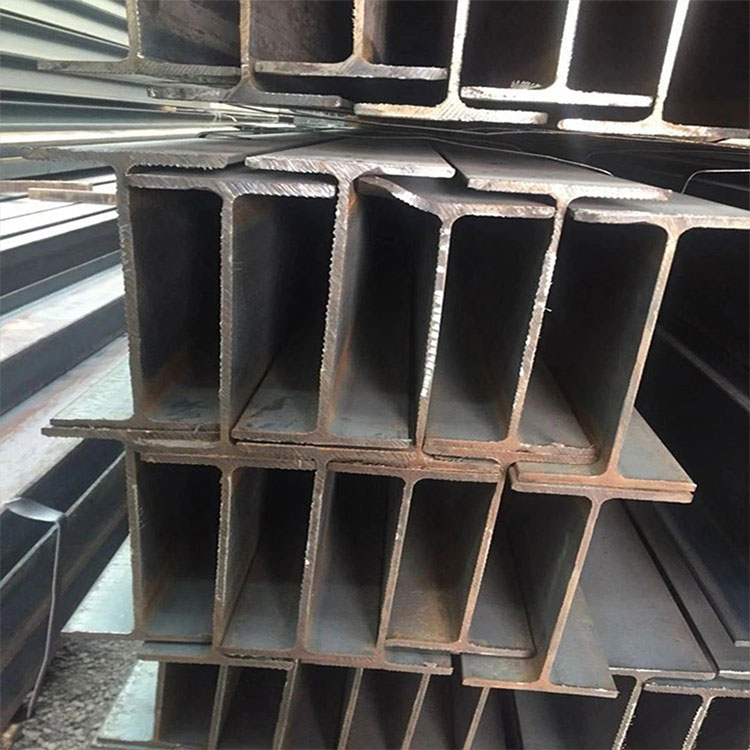

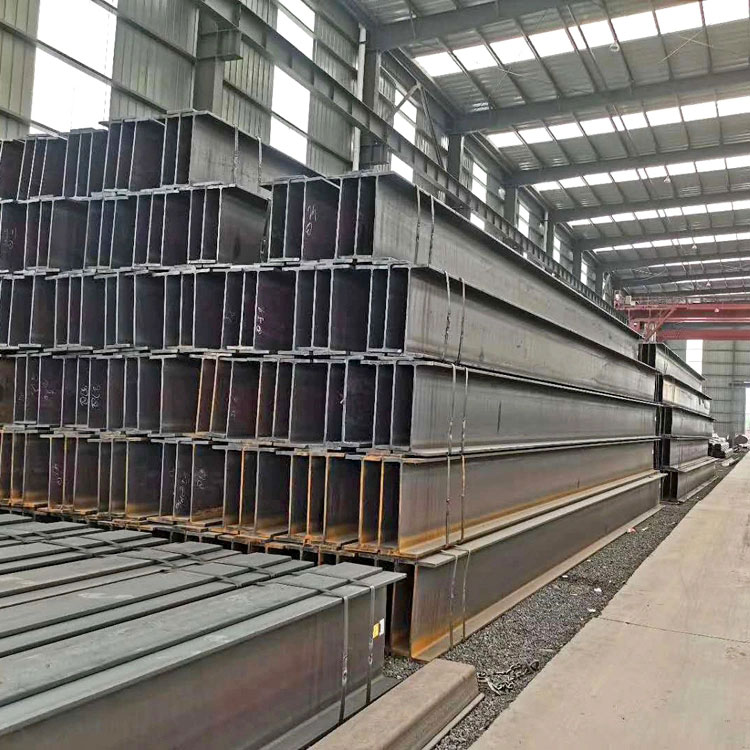

H-beam steel is an economic cross-sectional high-efficiency profile with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio, which is named because its cross-section is the same as the English letter "H". Since all parts of H-beam steel are arranged at right angles, H-beam steel has the advantages of strong bending ability, simple construction, cost saving and light structural weight in all directions, and has been widely used.

H beams are divided into hot-rolled H-beams and welded H-beams (H). Hot-rolled H-beams conclude wide-flange H-beams (HW), middle-flange H-beams (HM) and narrow-flange H-beams (HN). HW is H beam with basically same height and flange width, which is mainly used as core column in reinforced concrete frame structure, also called stiff steel column. HM is H beam that the ratio of the height and flange width is roughly 1.33~~1.75. Mainly used in steel structures as steel frame columns that bear dynamic loads, such as equipment platforms. HM is H beam that the ratio of the height and flange width is greater than or equal to 2. The main materials of H-beam are Q235B, SM490, SS400, Q345, Q345B, etc.

About Us

Jiangwei Metal is a professional manufacturer engaged in the research, development, production, sale and service.,  is committed to providing one-stop steel procurement services for global client.

Advantages of H-Beam

We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.

Applications of H-Beams

H beam is mainly used for beam and column members in industrial and civil structures.

• Load-bearing support for industrial structures.

• Steel piles and supporting structure of underground engineering.

• Structure of industrial equipment such as petrochemical and electric power.

• Long-span steel bridge components.

• Ship and machinery manufacturing frame structure.

• Girder support for trains, cars, and tractors.

• Port conveyor belt, high-speed baffle bracket.

Contact Us

As a leading company, Jiangwei Metal is known for our excellent product quality and professional services, providing our customers with a reliable partner. We have a global sales network that can meet the needs of customers in different countries and regions.If you need more information about us or have any other needs, please feel free to contact us. We look forward to working with you to create a better future.
