Product Introduction

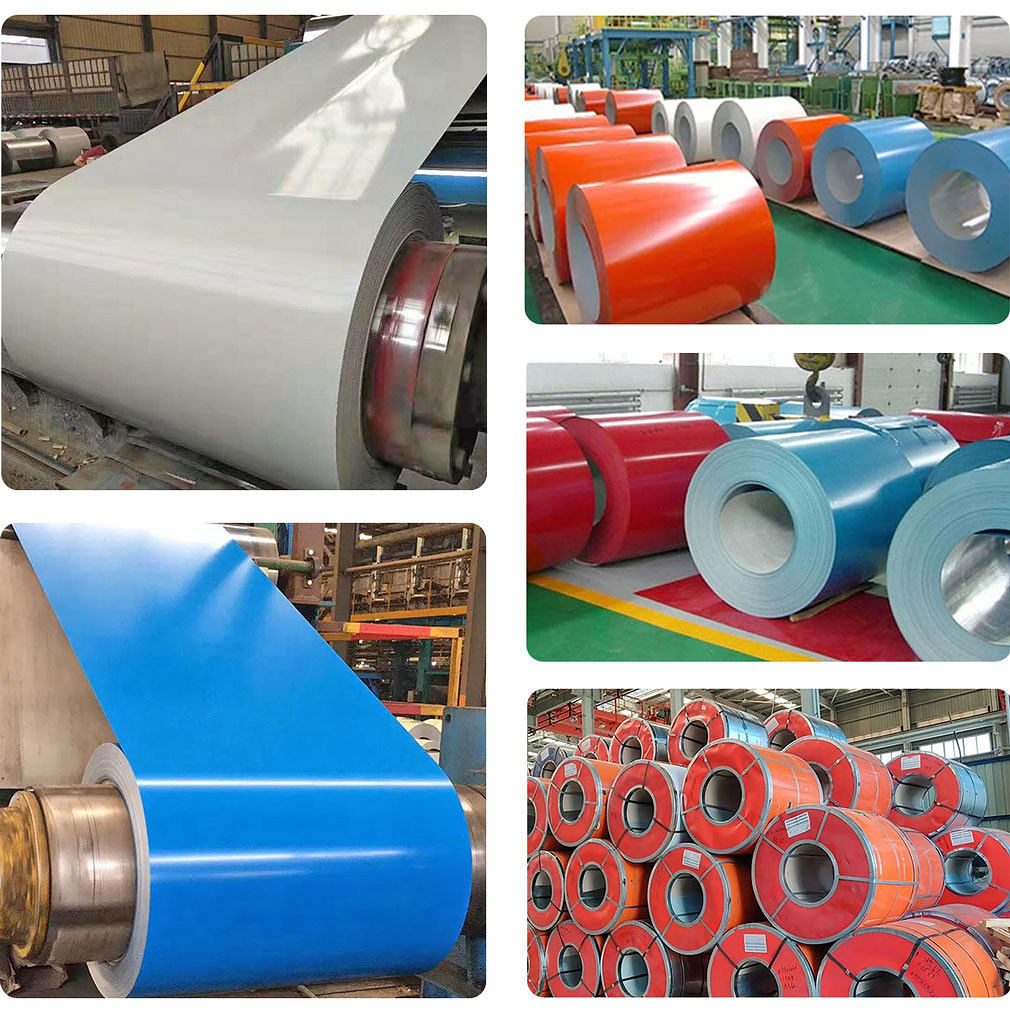

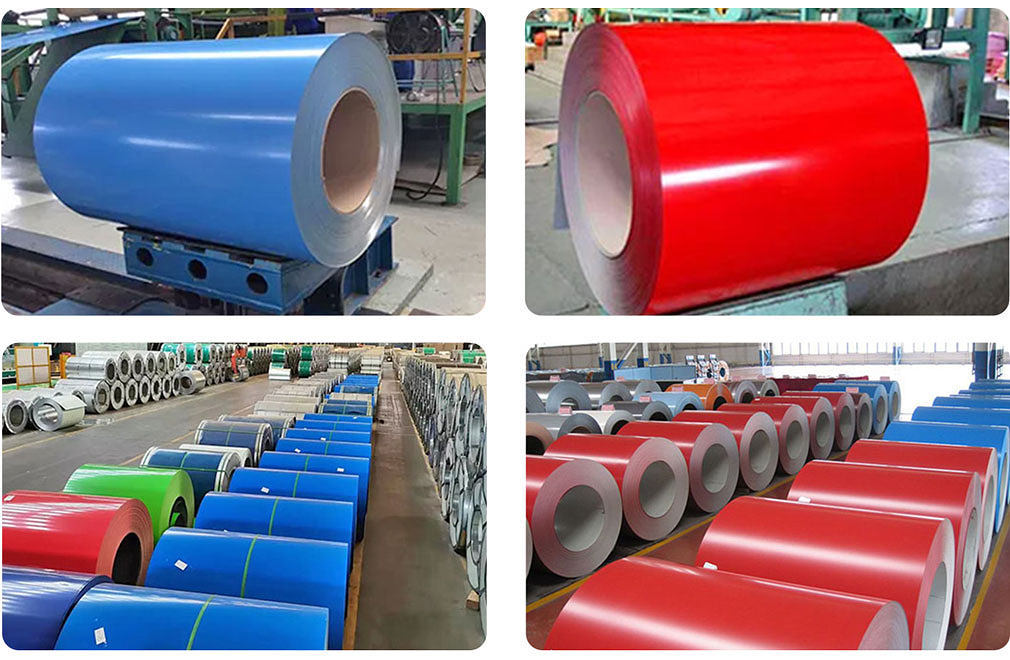

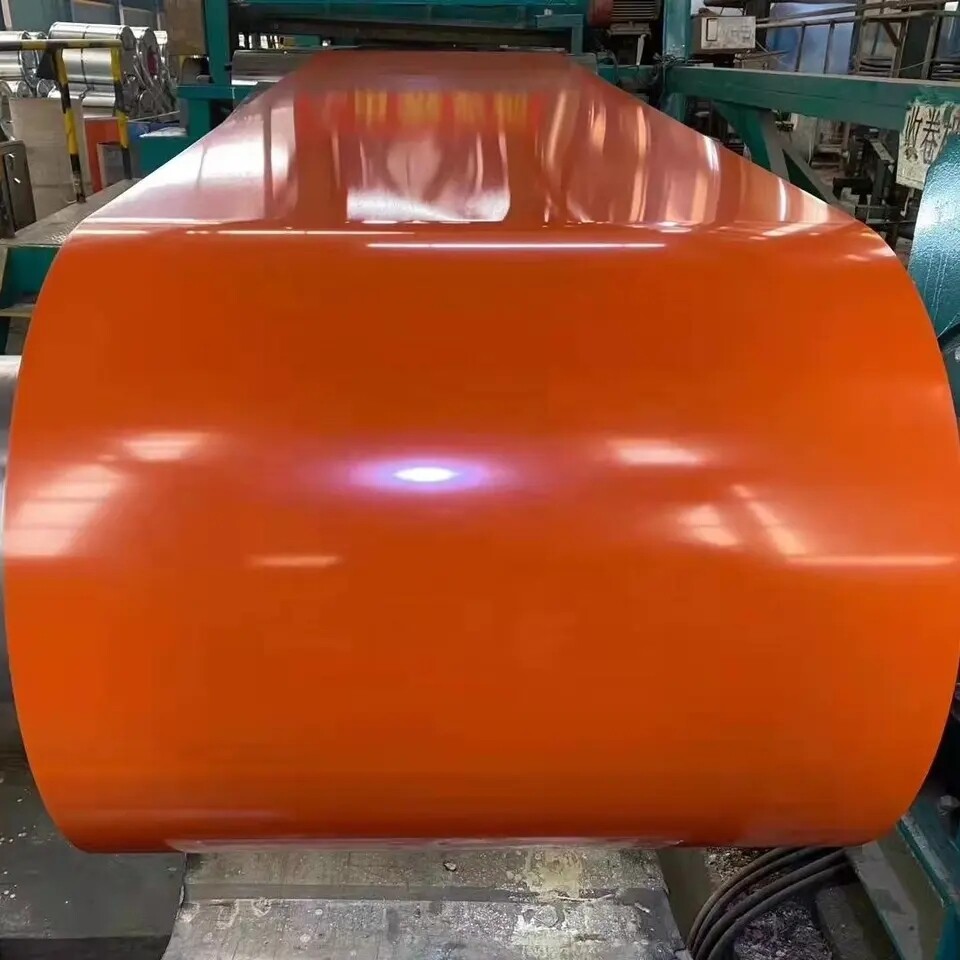

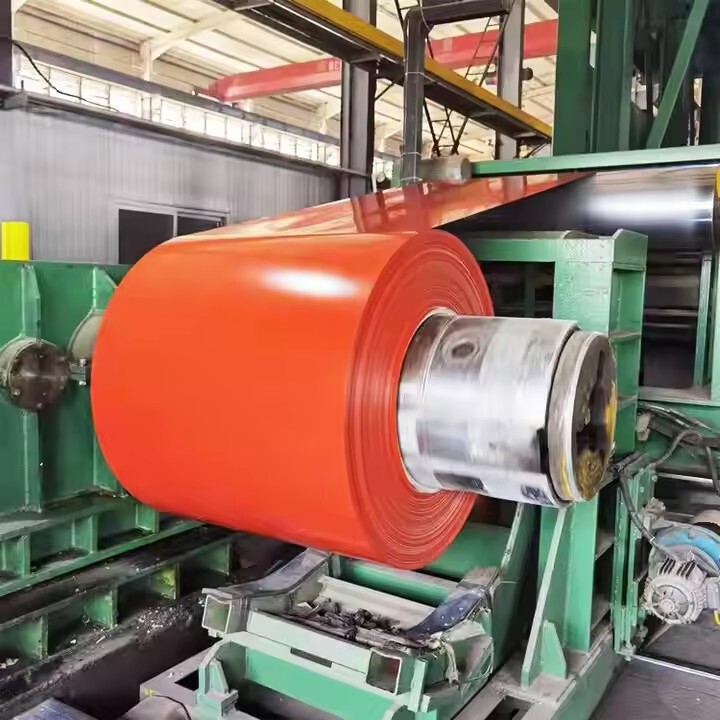

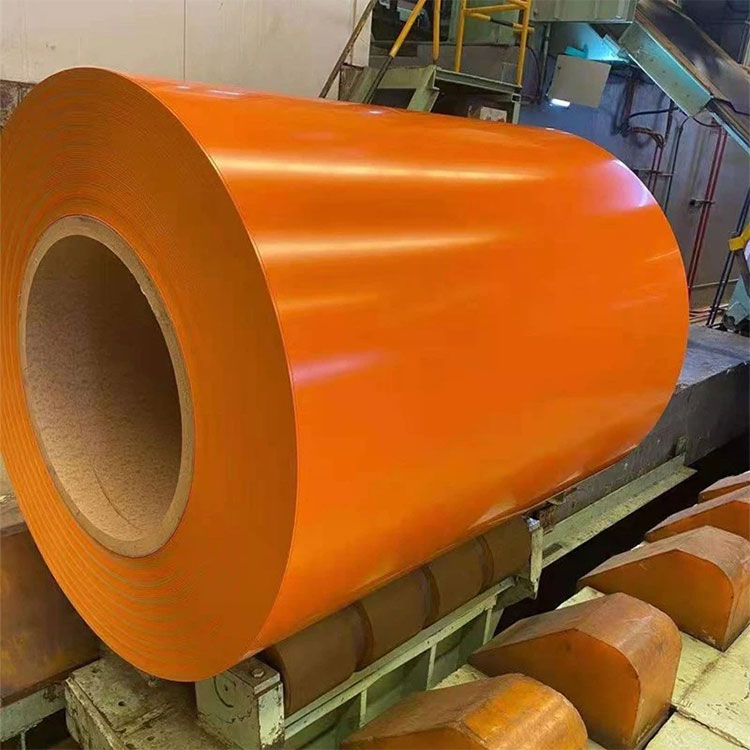

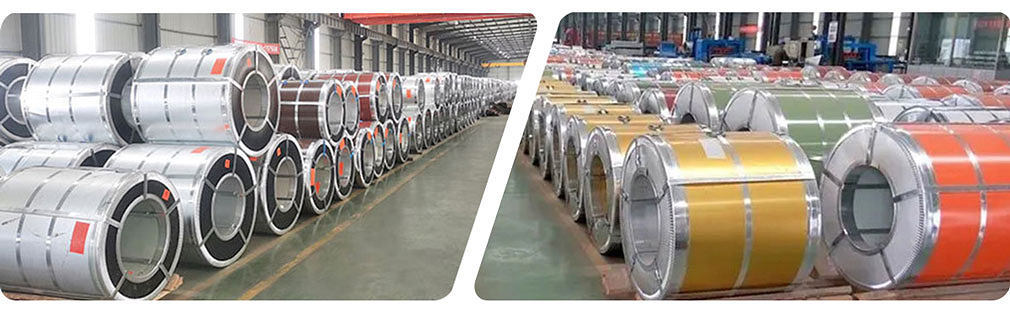

Prepainted Galvanized Steel Coil (PPGI) is manufactured by coating hot-dip galvanized steel with multiple layers of high-quality primer and topcoat through a continuous coil coating process. It is available in thicknesses from 0.12 mm to 2.0 mm, widths from 600 mm to 1,500 mm, and coil weights of 3–8 metric tons. Zinc coating options range from Z30 to Z275 g/m², while coating systems include PE, SMP, HDP, and PVDF to meet different environmental and performance requirements. Standard paint thickness is 15–25 μm on the top side and 5–10 μm on the reverse side, with customized specifications available upon request.

PPGI coils are supplied in a complete selection of RAL colors and surface finishes, including glossy, matte, wrinkle, embossed, wood grain, and marble patterns. They comply with international standards such as ASTM A755, ASTM A653, JIS G3312, EN 10169, EN 10346, and GB/T 12754. Every coil undergoes strict quality inspections for thickness, width, zinc coating, paint adhesion, gloss, flexibility, hardness, impact resistance, and corrosion resistance. With excellent formability, long-term durability, and an attractive finish, PPGI coils are widely used in roofing, wall cladding, sandwich panels, home appliances, garage doors, ceilings, and various industrial and commercial construction projects.

About Us

Jiangwei Metal is a professional manufacturer engaged in the research, development, production, sale and service.,  is committed to providing one-stop steel procurement services for global client.

Advantages of Prepainted Galvanized Steel Coil

1. Excellent Corrosion Resistance

Prepainted Galvanized Steel Coil (PPGI) combines a galvanized zinc coating with a durable paint layer for double corrosion protection. The zinc coating resists rust, while the paint blocks moisture, chemicals, and UV exposure. Even if the surface is scratched, the zinc continues protecting exposed steel. This makes PPGI ideal for roofing, wall cladding, and outdoor structures requiring long-lasting durability in demanding environments.

2. Attractive Appearance and Color Variety

PPGI provides a smooth finish in a wide range of RAL colors, gloss levels, and decorative patterns such as wood grain and marble. The factory-applied coating delivers a consistent appearance without additional painting. High-quality paint systems resist fading and weathering, helping buildings maintain their appearance for years while meeting both aesthetic and functional requirements.

3. Outstanding Processing Performance

PPGI offers excellent formability for bending, stamping, roll forming, cutting, and profiling. It is widely used to manufacture roofing sheets, wall panels, appliances, HVAC ducts, and furniture. The pre-painted surface improves production efficiency, reduces waste, and supports automated manufacturing, making it a reliable material for large-scale industrial applications.

4. Long Service Life with Low Maintenance

The galvanized coating and advanced paint systems provide excellent resistance to weather, UV rays, and moisture. PPGI products require less repainting and fewer repairs than ordinary steel, reducing maintenance costs throughout their service life. This long-term durability makes PPGI a cost-effective choice for residential, commercial, and industrial construction.

5. Lightweight and Cost-Effective Solution

PPGI combines high strength with low weight, reducing transportation and installation costs. Factory pre-painting eliminates on-site coating, saving labor and shortening construction time. Its long lifespan and low maintenance requirements further reduce total project costs, making it an economical material for many applications.

6. Environmentally Friendly and Sustainable

PPGI is a recyclable and environmentally friendly steel product. Factory coating processes produce less waste and lower emissions than on-site painting. Its long service life reduces material consumption and replacement frequency, while recyclable steel supports sustainable construction and modern green building projects.

We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.

Applications of Prepainted Galvanized Steel Coil

1. Roofing and Wall Cladding

Prepainted Galvanized Steel Coil is widely used for roofing sheets and wall cladding in residential, commercial, and industrial buildings. Its excellent corrosion resistance, weather durability, and attractive appearance provide long-lasting protection while reducing maintenance costs. Various colors and coatings allow architects to create modern and durable building exteriors.

2. Home Appliances

PPGI is an ideal material for manufacturing home appliances such as refrigerators, washing machines, microwave ovens, air conditioners, and water heaters. The smooth painted surface offers excellent scratch resistance, corrosion protection, and an attractive finish. It also supports efficient stamping and forming during mass production.

3. Sandwich Panels

Prepainted Galvanized Steel Coil is commonly used as the outer skin of insulated sandwich panels for cold storage, warehouses, clean rooms, and industrial buildings. The painted surface protects against moisture and corrosion, while the lightweight structure provides excellent thermal insulation and quick installation for modern construction projects.

4. Doors, Shutters, and Ceilings

PPGI is extensively used to produce rolling shutters, garage doors, security doors, ceiling panels, and partition systems. Its high strength, decorative finish, and excellent formability make it suitable for products requiring durability, attractive appearance, and reliable performance in residential and commercial buildings.

5. HVAC and Ventilation Systems

Heating, ventilation, and air conditioning manufacturers use PPGI to produce air ducts, ventilation panels, and equipment casings. The corrosion-resistant coating improves product durability in humid environments, while the lightweight steel simplifies fabrication, transportation, and installation for commercial and industrial HVAC systems.

6. Agricultural and Industrial Buildings

PPGI is widely applied in factories, warehouses, workshops, barns, poultry houses, and agricultural storage facilities. Its resistance to rain, sunlight, humidity, and corrosion ensures long service life under demanding conditions. The material is easy to install, cost-effective, and suitable for large-span steel structure buildings worldwide.
